Products / luminIQ
LUMINIQ · CONNECTED EMERGENCY LIGHTING
Lighting you can
keep in view.
Automatic testing, remote status monitoring and fault reporting across six lighting families, with LoRaWAN-equipped variants.
6
lighting families
21
operational data points
LoRaWAN
equipped variants
CONNECTED TESTING
Emergency lighting, brought into your building systems.
Connected testing supports maintenance workflows; it does not replace project-specific design, commissioning or required physical checks.
01
Connected testing and monitoring
Scheduled function and duration testing, remote status monitoring and fault reporting. The range brochure describes 21 operational data points covering battery health, test results, faults and device status. A compatible application can support notifications, remote test initiation and a digital logbook of test history.
02
Your lighting. Your connected systems.
Plan LoRaWAN network coverage, gateway connectivity, supported payloads, remote commands and maintenance responsibilities for your selected fittings. Notification delivery, digital records and remote controls depend on the chosen network and application configuration.
03
Specify with the details in hand
Request the model datasheet, applicable certification references, regional availability and warranty terms. Confirm output, emergency duration, IP rating, power requirements and mounting arrangements against your project design.
MODEL FINDER
Find the right luminIQ model.
Compare mounting, protection, emergency duration, light output and legend requirements. Specifications apply to the stated reference; options vary by configuration. Confirm the selected model with Nesos before ordering.

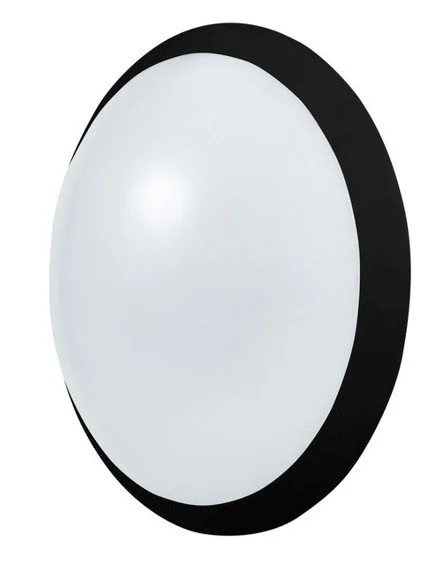

CIRCULAR LUMINAIRE
Series 110
Circular luminaire for corridors, stairwells and communal areas.
Reference
1Y1212W (LoRa)
Light source
12 W LED · 230 V AC/DC
Protection
IP65 · 3 × IK10 · Class II
Options
White / black; 3,000 / 4,000 K; optional light and motion sensors

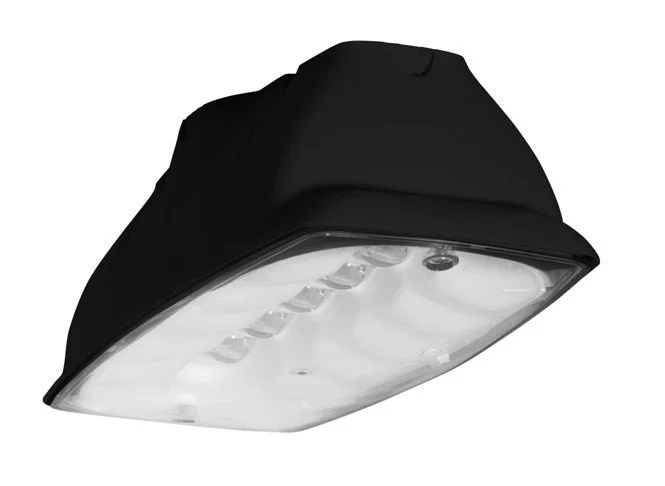

BULKHEAD LUMINAIRE
Series 200
Wall-mounted emergency bulkhead for corridors and service areas.
Reference
2Y0505WCE (LoRa)
Output
570 lm normal; 365 lm at 1 h / 122 lm at 3 h emergency
Duration
Selectable 1 or 3 hours
Protection
IP65 · IK10 · Class II
EXIT SIGNAGE
Series 300
Exit signage with wall or ceiling mounting and selectable maintained operation.
Reference
3Y0606F (LoRa)
Output
585 lm normal; 300 lm at 1 h / 100 lm at 3 h emergency
Duration
Selectable 1 or 3 hours
Protection
IP42 · IK08 · Class II

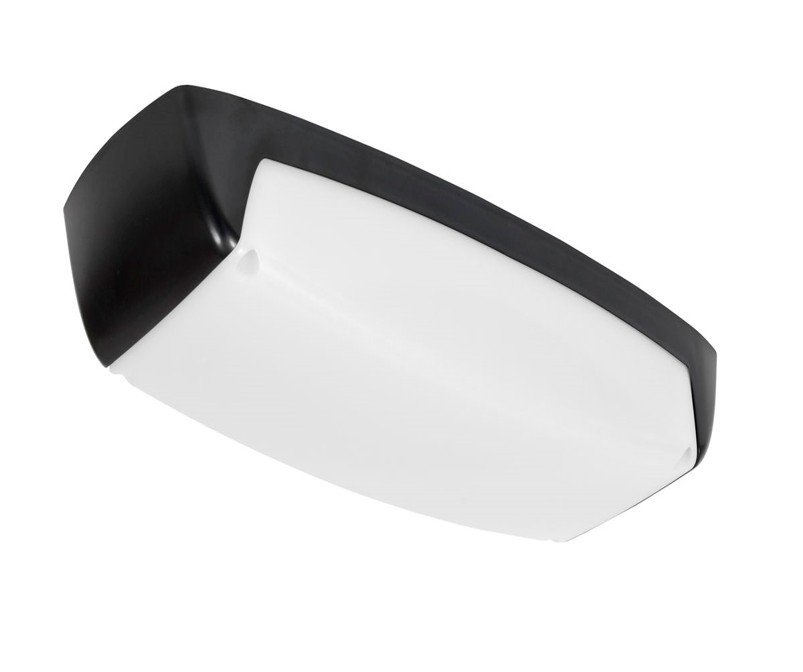

ROBUST LUMINAIRE
Series 440
Impact-resistant luminaire for entrances, circulation routes and technical environments.
Reference
4XY0909W (LoRa)
Output
Up to 720 lm normal; 380 lm at 1 h / 130 lm at 3 h emergency
Duration
Selectable 1 or 3 hours
Protection
IP65 · 3 × IK10 · Class II

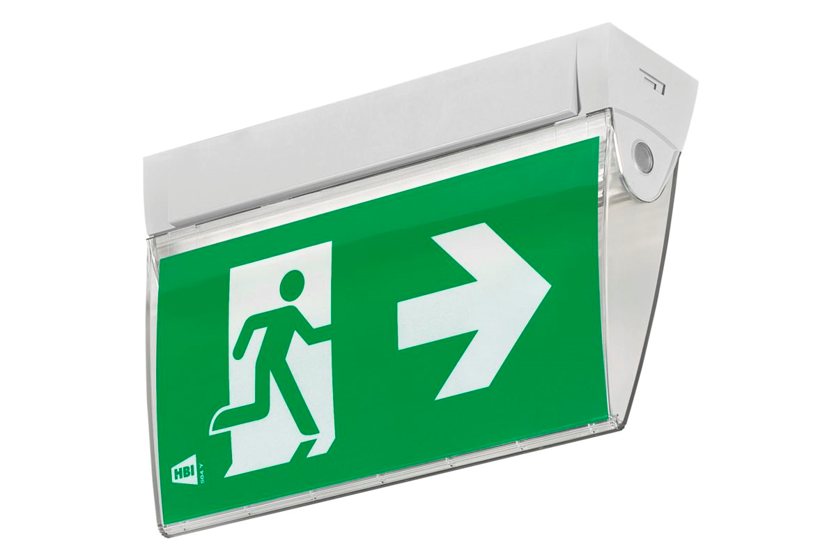

LIGHTING & SIGNAGE
Series 550
Emergency illumination and exit-sign configurations for wall or ceiling installation.
Reference
5AY0606V (LoRa)
Output
400 lm normal; 300 lm at 1 h / 80 lm at 3 h emergency
Protection
IP40 · IK08 · Class II
Viewing distance
19 or 29 m, depending on legend

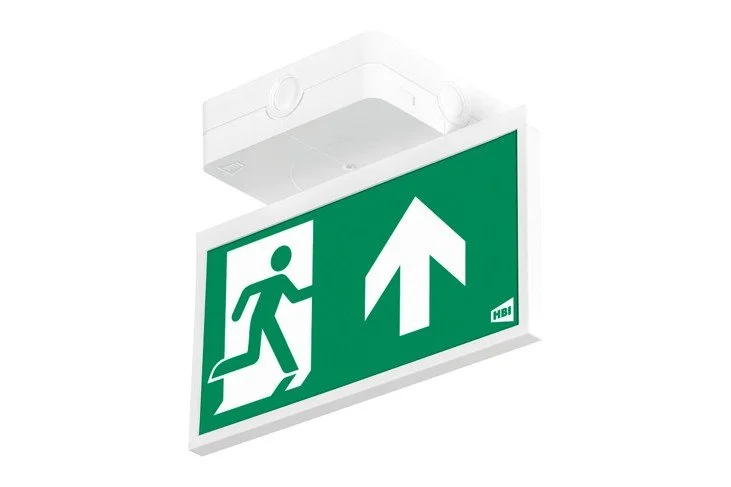

FLEXIBLE FORMATS
Series 770
Recessed spots, surface fittings and exit signs within one versatile family.
Spot example
7SY0404W Lowbay (LoRa)
Output
4 W LED · 489 lm emergency
Protection
IP20 · Class II
Mounting
Recessed ceiling; 80–94 mm cut-out; lowbay lens for mounting up to 7 m
Planning a luminIQ project?
Tell us the building types, target market, number of fittings and existing network or platform.
